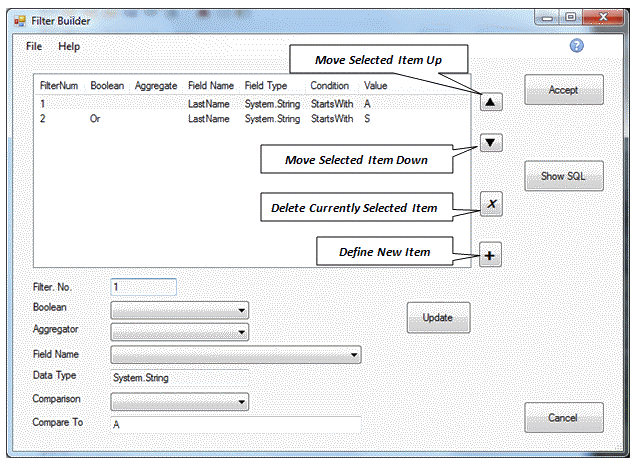

Filter Builder Form

You can use this form to build the filter using prompts and drop-down lists.

Filter List at top left of form will show the currently defined components of the filter.

Filter Components

Filter No.

Position of the filter component in the filter text.

Boolean

Valid Values:

Blank

And

Or

NOTE: Do not specify a Boolean for Filter No. 1.

Aggregator

Numerical functions to apply to the field in the filter component.

Valid Values:

Blank

Count

Sum

Min

Max

Avg

Field Name

Name of field that will be filtered on.

Valid values will consist of a drop-down list of the column names in the extract data source.

Data Type

This is automatically determined when a field name is selected.

Data type will be derived from the data type of the column in the extract data source.

Comparison

Valid Values:

Compare To

Text string that represents that value being compared to in the filter.

Update Button

Posts the Filter Components values to the currently selected filter in the Filter List.

Move Selected Item Up Button

Moves up the currently selected Filter Component in the Filter List.

Use this to rearrange how the Filter Components will line up on the Filter List.

Move Selected Item Down Button

Moves down the currently selected Filter Component in the Filter List.

Use this to rearrange how the Filter Components will line up on the Filter List.

Delete Currently Selected Item Button

Removes the currently selected Filter Component in the Filter List.

Values contained in deleted component will no longer be included in the filter text.

Define New Item Button

Click this button to add a new Filter Component to the Filter List.

Clicking this button will clear the fields in the Filter Components area in the lower left portion of the form.

Accept Button

Accepts all changes to the Filter List and returns you to the Filter Definition Form.

Filter Text area of the Filter Definition Form will be updated using the Filter List.

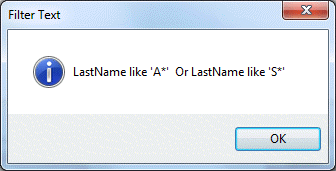

Show SQL Button

Click this button to show a popup message containing the filter text that will be generated if the current Filter List is accepted.

Example:

Cancel Button

Cancels all changes and returns you to the Filter Definition Form.
