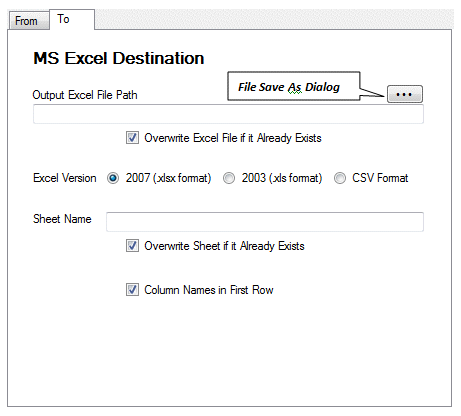

MS Excel Destination

Output Excel File Path

Specify the folder and file name for the Excel spreadsheet file which will received and store the extracted data.

File Save As Dialog Button

Click this button to use the Windows File Save As dialog to specify the full path to the destination Excel spreadsheet file.

Overwrite Excel File if it Already Exists

Set this option to true (checked) to have the extract process overwrite the destination file if it already exists.

If set to false (unchecked) and the file already exists, the extractor process will terminate with an error message.

Excel Version

2007 (xlsx format)

2003 (xls format)

CSV Format

Use these options to specify whether the data will be contained in an XLSX, XLS or CSV formatted Excel spreadsheet file.

Sheet Name

Specify the name of the Excel sheet to contain the data.

Overwrite Sheet if it Already Exists

Set this option to true (checked) to overwrite the output Excel sheet if it already exists.

If set to false (unchecked) and the sheet already exists, the extractor process will terminate with an error message.

Column Names in First Row

Set this option to true (checked) to specify that the first row of the output data will contain column names.
