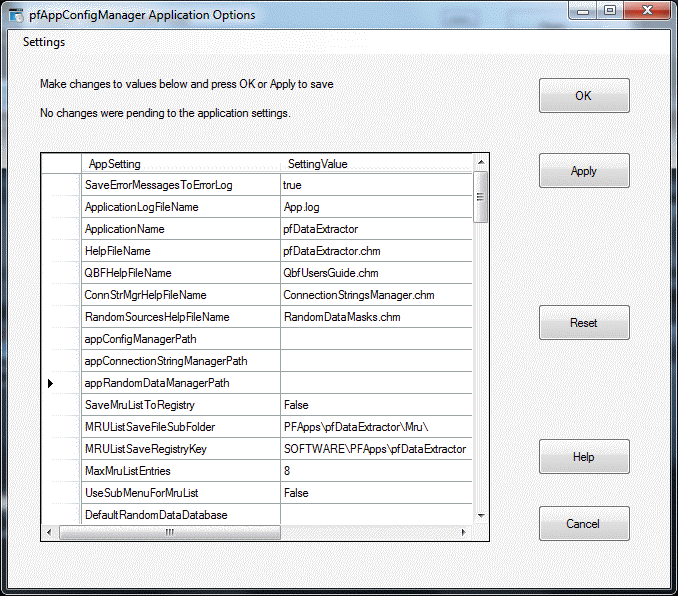

App Settings

Description/Notes

Valid Values

Default Value

SaveErrorMessagesToErrorLog

Determines whether or not error messages are save to special app error log.

True

False

true

ApplicationLogFileName

Name of the file to which application error messages will be written.

File name plus extension.

App.log

ApplicationName

Name of application. This will affect some of the display areas of the application.

Should generally be pfDataExtractor unless tech support directs you to make a change.

pfDataExtractor

HelpFileName

Only change this value if help file is not in same folder as executable.

File name plus extension.

pfDataExtractor.chm

QBFHelpFileName

Name of help file used by Query Builder Form.

File name plus extension.

QbfUsersGuide.chm

ConnStrMgrHelpFileName

Name of help file used by connection string manager forms..

File name plus extension.

ConnectionStringsManager.chm

RandomSourcesHelpFileName

Name of help file used by random data sources manager forms..

File name plus extension.

RandomDataMasks.chm

appConfigManagerPath

Path to the appConfigManager program. (Default is to leave this value blank. pfPgpEncryptor assumes the appConfigManager is in the same folder as pfPgpEncryptor executable.)

Generally, you should leave this value blank. Only supply a valid Windows file path if the appConfigManager app has been moved.

appConnectionStringManagerPath

Path to the executable for connection strings management.

Leave this blank until directed to change it by technical support.

appRandomDataManagerPath

Path to the executable for the Random Data Definitions Manager.

Leave this blank until directed to change it by technical support.

SaveMruListToRegistry

Leave this as False.

If true, the application will try to save the recent file list to the registry. In general, security will block this.

False

True

False

MRUListSaveFileSubFolder

Leave this at default value.

Specifies subfolder where MRU list will be stored.

Path of subfolder under MyDocuments that will contain the MRU list.

PFApps\pfDataExtractor\Mru\

MRUListSaveRegistryKey

Do not change unless directed to change by technical support.

Registry key that will contain MRU list if SaveMruListToRegistry equals true.

SOFTWARE\PFApps\pfDataExtractor

MaxMruListEntries

Maximum number of files to store in the MRU (Most recently used) list.

Default is eight.

8

UseSubMenuForMruList

If true a sub-menu is under the File menu is used for the MRU list.

If false, the list is shown directly under the File menu.

True

False

False

DefaultRandomDataDatabase

Leave blank.

String value.

Leave this blank until directed to change it by technical support.

DefaultRandomDataDatabasePassword

Do not change this value.

String value.

L96EuzZXNeEBHoIEPP6EDg==

DefaultRandomDataXmlFilesFolder

Location of files containing data used to generate random values.

Do not change this value.

Valid Windows file path
or
Blank

DesktopDatabaseFolder

Use *DocumentsFolder* wildcard to force the path to be in your MyDocuments folder.

Valid Windows file path
or
Blank

or

Special path value that starts with *DocumentsFolder*

*DocumentsFolder*\PFApps\pfDataExtractor\DataExports

TestOrdersDatabase

Location of database containing template data for Generate Test Orders Utility

NOTE: Leave this value blank unless directed to change it by product support.

Valid Windows file path
or
Blank

DefaultOutputDatabaseBatchSize

Default value used by database output form when initializing.

This value will usually be overridden by the batch size settings for individual database providers.

Number

200

ReplaceOutputTableIfExists

Default for specifying whether or not to overwrite an existing table during an export process.

True

False

True

DefaultOutputTableName

Default name to give the output database table being created by the grid export process.

String value.

DataExtractorOutputTable

DefaultSchema_SQLServerCE35

Do not specify a schema for SQLCE 3.5.

String value.

DefaultSchema_SQLServerCE40

Do not specify a schema for SQLCE 4.0.

String value.

DefaultSchema_OracleNative

Specify the default schema to use when displaying an Oracle table name.

String value.

hr

DefaultSchema_MySQL

Specify the default schema to use when displaying a MySQL table name.

String value.

sakila

DefaultSchema_DB2

Specify the default schema to use when displaying a DB2 table name.

String value.

dbo

DefaultSchema_Informix

Specify the default schema to use when displaying an Informix table name.

String value.

informix

DefaultSchema_Sybase

Specify the default schema to use when displaying a Sybase table name.

String value.

dbo

DefaultSchema_SQLAnywhere

Specify the default schema to use when displaying a SQL Anywhere table name.

String value.

dba

DefaultSchema_SQLAnywhereUltraLite

Do not specify a schema for UltraLite.

String value.

DefaultSchema_MSSQLServer

Specify the default schema to use when displaying a Microsoft SQL Server table name.

String value.

dbo

DefaultSchema_MSAccess

Do not specify a schema for Microsoft Access.

String value.

DefaultSchema_MSOracle

Specify the default schema to use when displaying an Oracle table name.

String value.

hr

DefaultSchema_ODBC

Specify the default schema to use when displaying a table name using an ODBC connection..

String value.

DefaultSchema_OLEDB

Specify the default schema to use when displaying a table name using an OLEDB connection..

String value.

DefaultOutputBatchSize_SQLServerCE35

Always set to 1 for this database platform.

Number

1

DefaultOutputBatchSize_SQLServerCE40

Always set to 1 for this database platform.

Number

1

DefaultOutputBatchSize_OracleNative

Specifies number of rows to include in a batch when writing to the database.

Larger numbers may speed up processing. However, too large a number may waste system resources and slow down processing.

Number

200

DefaultOutputBatchSize_MySQL

Specifies number of rows to include in a batch when writing to the database.

Larger numbers may speed up processing. However, too large a number may waste system resources and slow down processing.

Number

200

DefaultOutputBatchSize_DB2

Specifies number of rows to include in a batch when writing to the database.

Larger numbers may speed up processing. However, too large a number may waste system resources and slow down processing.

Number

200

DefaultOutputBatchSize_Informix

Always set to 1 for this database platform.

Number

1

DefaultOutputBatchSize_Sybase

Specifies number of rows to include in a batch when writing to the database.

Larger numbers may speed up processing. However, too large a number may waste system resources and slow down processing.

Number

200

DefaultOutputBatchSize_SQLAnywhere

Specifies number of rows to include in a batch when writing to the database.

Larger numbers may speed up processing. However, too large a number may waste system resources and slow down processing.

Number

200

DefaultOutputBatchSize_SQLAnywhereUltraLite

Always set to 1 for this database platform.

Number

1

DefaultOutputBatchSize_MSSQLServer

Specifies number of rows to include in a batch when writing to the database.

Larger numbers may speed up processing. However, too large a number may waste system resources and slow down processing.

Number

200

DefaultOutputBatchSize_MSAccess

Always set to 1 for this database platform.

Number

1

DefaultOutputBatchSize_MSOracle

Specifies number of rows to include in a batch when writing to the database.

Larger numbers may speed up processing. However, too large a number may waste system resources and slow down processing.

Number

200

DefaultOutputBatchSize_ODBC

Specifies number of rows to include in a batch when writing to the database.

Larger numbers may speed up processing. However, too large a number may waste system resources and slow down processing.

This parameter will be ignored by some ODBC database drivers.

Number

200

DefaultOutputBatchSize_OLEDB

Specifies number of rows to include in a batch when writing to the database.

Larger numbers may speed up processing. However, too large a number may waste system resources and slow down processing.

This parameter will be ignored by some OLEDB database providers.

Number

200

MSSQLServer

Delimited string containing information needed to load SQL Server database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFDataAccessObjects|PFSQLServer|PFDataAccessObjects.dll

SQLServerCE35

Delimited string containing information needed to load SQLCE 3.5 database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFSQLServerCE35Objects|PFSQLServerCE35|PFSQLServerCE35Objects.dll

SQLServerCE40

Delimited string containing information needed to load SQLCE 4.0 database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFSQLServerCE40Objects|PFSQLServerCE40|PFSQLServerCE40Objects.dll

MSAccess

Delimited string containing information needed to load Microsoft Access database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFDataAccessObjects|PFMsAccess|PFDataAccessObjects.dll

MSOracle

Delimited string containing information needed to load Microsoft Oracle database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFDataAccessObjects|PFMsOracle|PFDataAccessObjects.dll

OracleNative

Delimited string containing information needed to load Oracle Native database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFOracleObjects|PFOracle|PFOracleObjects.dll

MySQL

Delimited string containing information needed to load MySQL database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFMySQLObjects|PFMySQL|PFMySQLObjects.dll

DB2

Delimited string containing information needed to load DB2 database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFDB2Objects|PFDB2|PFDB2Objects.dll

Informix

Delimited string containing information needed to load Informix database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFInformixObjects|PFInformix|PFInformixObjects.dll

Sybase

Delimited string containing information needed to load Sybase Adaptive Server database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFSybaseObjects|PFSybase|PFSybaseObjects.dll

SQLAnywhere

Delimited string containing information needed to load Sybase SQL Anywhere database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFSQLAnywhereObjects|PFSQLAnywhere|PFSQLAnywhereObjects.dll

SQLAnywhereUltraLite

Delimited string containing information needed to load Sybase SQL Anywhere UltraLite database driver at runtime.

Do not change this value unless instructed to do so by product support.

PFSQLAnywhereULObjects|PFSQLAnywhereUL|PFSQLAnywhereULObjects.dll

ODBC

Delimited string containing information needed to load .NET database driver for ODBC at runtime.

Do not change this value unless instructed to do so by product support.

PFDataAccessObjects|PFOdbc|PFDataAccessObjects.dll

OLEDB

Delimited string containing information needed to load .NET database driver for OLEDB at runtime.

Do not change this value unless instructed to do so by product support.

PFDataAccessObjects|PFOleDb|PFDataAccessObjects.dll

Unknown

Delimited string containing information needed to load a database driver at runtime.

Only used by application in cases where errors have occurred.

Do not change this value unless instructed to do so by product support.

PFDataAccessObjects|PFDatabase|PFDataAccessObjects.dll

DefaultConnection_MSSQLServer

Connection string containing valid key/value entries for a SQL Server connection.

See SQL Server Connection Strings for more information on building a SQL Server connection string.

.

A valid connection string for initial display when MSSQLServer platform is selected by user from an application drop-down list.

DefaultConnection_SQLServerCE35

Connection string containing valid key/value entries for a SQLCE 3.5 connection.

See SQLCE 3.5 Connection Strings for more information on building a SQLCE 3.5 connection string.

.

A valid connection string for initial display when SQLCE 3.5 platform is selected by user from an application drop-down list.

DefaultConnection_SQLServerCE40

Connection string containing valid key/value entries for a SQLCE 4.0 connection.

See SQLCE 4.0 Connection Strings for more information on building a SQLCE 4.0 connection string.

.

A valid connection string for initial display when SQLCE 4.0 platform is selected by user from an application drop-down list.

DefaultConnection_OracleNative

Connection string containing valid key/value entries for an Oracle Native connection.

See Oracle Native Connection Strings for more information on building an Oracle Native connection string.

.

A valid connection string for initial display when Oracle Native platform is selected by user from an application drop-down list.

DefaultConnection_MySQL

Connection string containing valid key/value entries for a MySQL connection.

See MySQL Connection Strings for more information on building a MySQL connection string.

.

A valid connection string for initial display when MySQL platform is selected by user from an application drop-down list.

DefaultConnection_DB2

Connection string containing valid key/value entries for a DB2 connection.

See DB2 Connection Strings for more information on building a DB2 connection string.

.

A valid connection string for initial display when DB2 platform is selected by user from an application drop-down list.

DefaultConnection_Informix

Connection string containing valid key/value entries for an Informix connection.

See Informix Connection Strings for more information on building an Informix connection string.

.

A valid connection string for initial display when Informix platform is selected by user from an application drop-down list.

DefaultConnection_Sybase

Connection string containing valid key/value entries for a Sybase connection.

See Sybase Connection Strings for more information on building a Sybase connection string.

.

A valid connection string for initial display when Sybase platform is selected by user from an application drop-down list.

DefaultConnection_SQLAnywhere

Connection string containing valid key/value entries for a SQL Anywhere connection.

See SQL Anywhere Connection Strings for more information on building a SQL Anywhere connection string.

.

A valid connection string for initial display when SQL Anywhere platform is selected by user from an application drop-down list.

DefaultConnection_SQLAnywhereUltraLite

Connection string containing valid key/value entries for a SQL Anywhere UltraLite connection.

See SQL Anywhere UltraLite Connection Strings for more information on building a SQL Anywhere UltraLite connection string.

.

A valid connection string for initial display when SQL Anywhere UltraLite platform is selected by user from an application drop-down list.

DefaultConnection_MSAccess

Connection string containing valid key/value entries for a Microsoft Access connection.

See Microsoft Access Connection Strings for more information on building a Microsoft Access connection string.

.

A valid connection string for initial display when Microsoft Access platform is selected by user from an application drop-down list.

DefaultConnection_MSOracle

Connection string containing valid key/value entries for a Microsoft Oracle Provider connection.

See MS Oracle Provider for .NET Connection Strings for more information on building a Microsoft Oracle Provider connection string.

.

A valid connection string for initial display when Microsoft Oracle Provider platform is selected by user from an application drop-down list.

DefaultConnection_ODBC

Connection string containing valid key/value entries for an ODBC connection.

See ODBC Connection Strings for more information on building an ODBC connection string.

.

A valid connection string for initial display when ODBC platform is selected by user from an application drop-down list.

DefaultConnection_OLEDB

Connection string containing valid key/value entries for an OLEDB connection.

See OLEDB Connection Strings for more information on building an OLEDB connection string.

.

A valid connection string for initial display when OLEDB platform is selected by user from an application drop-down list.

SQLAnywhereUltraLiteInstallFolder

Only change this if SQL Anywhere UltraLite is installed on your machine but not installed in the default installation directory.

You would only have to change this if you are trying to use SQL Anywhere UltraLite, you know it is installed but you are getting error messages saying the application cannot find the UltraLite software.

Valid Windows file path

C:\Program Files\SQL Anywhere 12\UltraLite\UltraLite.NET\Assembly\V2\iAnywhere.Data.UltraLite.dll

ClientSettingsProvider.ServiceUri

Not used.

String value.

NumberOfRandomValueSamples

Number of rows to output when generating a random name list.

Number

1000

NumberOfTestOrderPreviewTransactions

Default number of transactions to generate for a preview of test orders.

Number

100

VeryLargeDataTableRowCountThreshold

Maximum number of output rows for standard processing. Any row counts higher than this number will trigger special processing to handle the very large result set.

Number.

100000

MaxDataTableRowsForWordOutput

Maximum number of rows to output to a Word export destination.

Number.

65536

MaxTempDataTableRows

Maximum number of rows to write to temporary tables that are used when processing very large result sets.

Number.

50000

RandomDataFolder

Leave blank.

Do not change unless directed to by product support.

Valid Windows file path

RandomDefinitionsFolder

Leave blank.

Do not change unless directed to by product support.

Valid Windows file path

RandomOriginalDefinitionsFolder

Leave blank.

Do not change unless directed to by product support.

Valid Windows file path

RandomNumbersSubfolder

Folder where definitions for random number processing are stored.

If blank, default path will be used.

Valid Windows file path
or
Blank

C:\Users\YourUsername\Documents\PFApps\Randomizer\Definitions\Numbers

RandomDatesAndTimesSubfolder

Folder where definitions for random dates and times processing are stored.

If blank, default path will be used.

Valid Windows file path
or
Blank

C:\Users\YourUsername\Documents\PFApps\Randomizer\Definitions\ DatesAndTimes

RandomBooleansSubfolder

Folder where definitions for random Booleans processing are stored.

If blank, default path will be used.

Valid Windows file path
or
Blank

C:\Users\YourUsername\Documents\PFApps\Randomizer\Definitions\Booleans

RandomStringsSubfolder

Folder where definitions for random strings processing are stored.

If blank, default path will be used.

Valid Windows file path
or
Blank

C:\Users\YourUsername\Documents\PFApps\Randomizer\Definitions\Strings

RandomWordsSubfolder

Folder where definitions for random words processing are stored.

If blank, default path will be used.

Valid Windows file path
or
Blank

C:\Users\YourUsername\Documents\PFApps\Randomizer\Definitions\Words

RandomNamesAndLocationsSubSubfolder

Folder where definitions for random names and locations processing are stored.

If blank, default path will be used.

Valid Windows file path
or
Blank

C:\Users\YourUsername\Documents\PFApps\Randomizer\Definitions\NamesAndLocations

RandomCustomValuesSubfolder

Folder where definitions for random custom values processing are stored.

If blank, default path will be used.

Valid Windows file path
or
Blank

C:\Users\YourUsername\Documents\PFApps\Randomizer\Definitions\CustomValues

RandomBytesSubfolder

Folder where definitions for random bytes processing are stored.

If blank, default path will be used.

Valid Windows file path
or
Blank

C:\Users\YourUsername\Documents\PFApps\Randomizer\Definitions\Bytes

RandomDataElementsSubfolder

Folder where definitions for random data elements processing are stored.

If blank, default path will be used.

Valid Windows file path
or
Blank

C:\Users\YourUsername\Documents\PFApps\Randomizer\Definitions\DataElements
