Export to XML File

Use this option to write data to an XML formatted document file.

You will be prompted for the name of the output file.

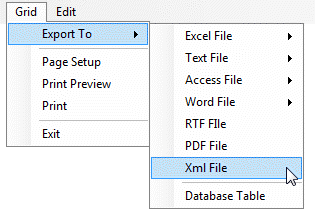

$image\DataGridExportToXML.gif$

You do not need any special software to write the XML file.

The output will contain both a schema and the data.

You can read the export file using most text editors.

Example XML Output From Random Names Generator

<?xml version="1.0" standalone="yes"?>

<xs:schema id="NewDataSet" xmlns="" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:msdata="urn:schemas-microsoft-com:xml-msdata">

<xs:element name="NewDataSet" msdata:IsDataSet="true" msdata:MainDataTable="Table" msdata:UseCurrentLocale="true">

<xs:complexType>

<xs:choice minOccurs="0" maxOccurs="unbounded">

<xs:element name="Table">

<xs:complexType>

<xs:sequence>

<xs:element name="FirstName" type="xs:string" minOccurs="0" />

<xs:element name="MiddleInitial" type="xs:string" minOccurs="0" />

<xs:element name="LastName" type="xs:string" minOccurs="0" />

<xs:element name="Gender" type="xs:string" minOccurs="0" />

<xs:element name="BirthDate" type="xs:string" minOccurs="0" />

<xs:element name="AddressLine1" type="xs:string" minOccurs="0" />

<xs:element name="AddressLine2" type="xs:string" minOccurs="0" />

<xs:element name="City" type="xs:string" minOccurs="0" />

<xs:element name="StateProvince" type="xs:string" minOccurs="0" />

<xs:element name="ZipPostalCode" type="xs:string" minOccurs="0" />

<xs:element name="TelephoneNumber" type="xs:string" minOccurs="0" />

<xs:element name="EmailAddress" type="xs:string" minOccurs="0" />

<xs:element name="NationalId" type="xs:string" minOccurs="0" />

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:choice>

</xs:complexType>

</xs:element>

</xs:schema>

<Table>

<FirstName>Angela</FirstName>

<LastName>Hofman</LastName>

<Gender>Female</Gender>

<AddressLine1>880 Meacham Rd</AddressLine1>

<City>Arlington</City>

<EmailAddress>ycubeyyweyzy@example.com</EmailAddress>

</Table>

</NewDataSet>
